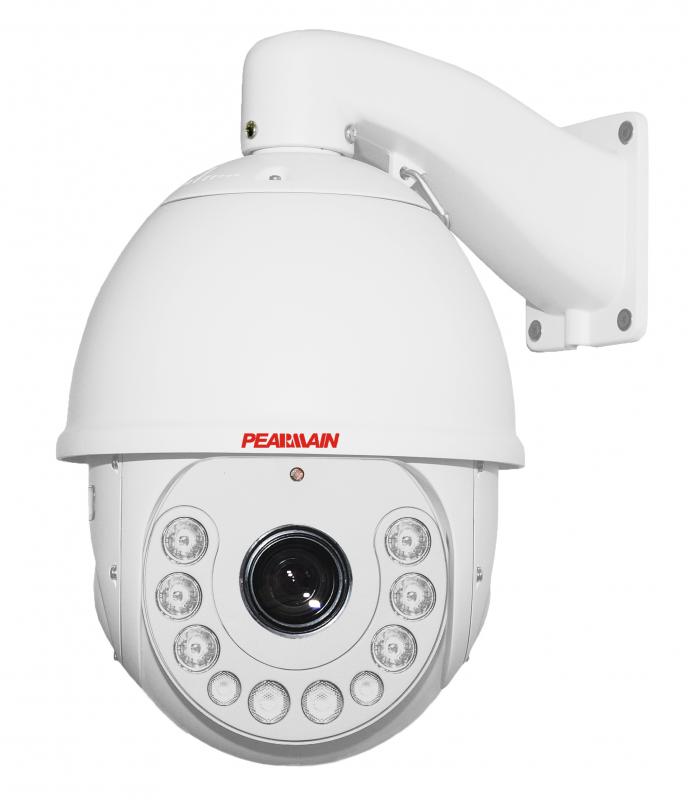

Model:PE3036OS1-IP-IR
weight:4.5kg
lens:4.7-94mm
100m IR distance
Network
|
Video Compression |
H.264 MP |
|
Pixel |
1920*1080 |
|
Frame Rate |
1080p/29.97fps, 1080p/25fps, 720p/59.94fps, 720p/50fps |
|
Network |
10/100M |
|
Protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP etc... |
|
Port |
RJ-45,10/100Base-T |
|
Video detection |
support |
|
Network |
10/100M |
|
Bit rate |
50Kb-8Mb |
|
Browse |
Web browse and setting |
|
User login |
6, at same time. |
Block Camera (Sony FCB-EH6300)
|
Image sensor |
1/2.8-type ‘Exmor’ CMOS |
|
Signal system |
HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 29.97 PsF), 1080i/50 (frame out: 25PsF) 720/59.94p, 720/50p, 720p/29.97, 720p/25 SD: NTSC, PAL (640x360) |
|
Number of total pixels |
Approx. 3.27 Megapixels |
|
Lens |
20x optical zoom, f=4.7 mm (wide) to 94.0 mm (tele), F1.6 to F3.5 |
|
Digital zoom |
12x (240x with optical zoom) |
|
Angle of view (H) |
1080p/30 mode: 55.4° (wide end) to 2.9° (tele end)720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end) |
|
Minimum working distance |
10 mm (wide) to 1000 mm (tele) (Default 300mm) |
|
Sync system |
Internal |
|
Minimum illumination |
High sensitivity mode: 0.5 lx (ICR Off) 0.095 lx (ICR On) (F1.6, 50 IRE)Normal mode: 1.7 lx (ICR Off) 0.3 lx (ICR On) (F1.6, 50 IRE) |
|
S/N ratio |
More than 50 dB |
|
Electronic shutter |
1/1 to 1/10,000 s, 22 steps |
|
White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapour Lamp (fix/Auto) One-push, Manual |
|
Gain |
Auto/Manual (-3 to +28 dB, +2 dB step/total 16 steps) Max. Gain Limit (+6dB to +28 dB, +2 dB step/total 12 steps) |
|
AE control |
Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE, Slow AE (approx 5 minutes) |
|
EV compensation |
N/A |
|
Focusing system |
Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR on. |
|
Video output |
HD Analogue: Component Y/Pb/Pr; Digital Y/Cb/Cr 4:2:2 via LVDS (signal format conforms to SMPTE296) SD VBS |
|
Camera control interface |
VISCA (CMOS 5 V level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, stop bit: 1bit |
Parameter Description
Pan-tilt:
|
Address |
0~255 |
|
Pan range |
360°Continue |
|
Tilt range |
0°~90° Flip |
|
Manual speed Pan |
0.05~240°/Sec |
|
Manual speed Tilt |
0.05~180°/Sec |
|
Preset speed |
300°/Sec |
|
Preset accuracy |
±0.50° |
|
Preset |
255 |
|
Remote firmware updating and setup |
to update firmware by RS485, to set ID by RS485 |
|
Cruise Tours |
8 Programmable(Dwell time speed preset point) |
|
Speed setup for cruise tour |
Yes |
|
Auto Scan |
1 Programmable (355° scan ) |
|
Time adjustment |
to adjust Time by broadcasting |
|
Integrate multi-protocol |
Pelco_D/P, PEARMAIN or OEM protocol |
|
Protocol Automatic identify |
Pelco_D/P, PEARMAIN |
|
Broadcasting address |
Yes |
|
anti-surge and anti-Lightning protection |
Yes, Power side:4KV, Video and data side: 2KV |
|
OSD menu operation |
Yes |
|
Supporting camera |
Automatic identify(Sony, Hitachi ,etc.) |
|
Camera menu operation |
Yes |
|
Camera character programming |
20 character |
|
Privacy masking |
Yes |
|
Ingress Protection IP66 |
Yes |
|
Operating Temperature |
–40℃~70℃ |
|
Humidity |
0%~90% (Non condensing) |
|
Heater operate |
(-5)℃ on +5℃ off |
|
Power |
24VAC±25%,60Hz/50Hz |
|
Consumption |
IR off 15W IR on 35W |
|
communication |
RS485 (+/-) |
|
Connection |
BNC cable |
|
Weight |
4.5kgs (without bracket) |
