Brand:AXIS
Model:AXIS Q9307-LV
Varifocal, 3–8 mm, F1.3
Horizontal field of view: 104°–40°
Vertical field of view: 74°–29°
Minimum focus distance: 1.0 m (3.3 ft)
IR corrected, remote zoom and focus, P-Iris control
Weight 1250 g (2.8 lb)

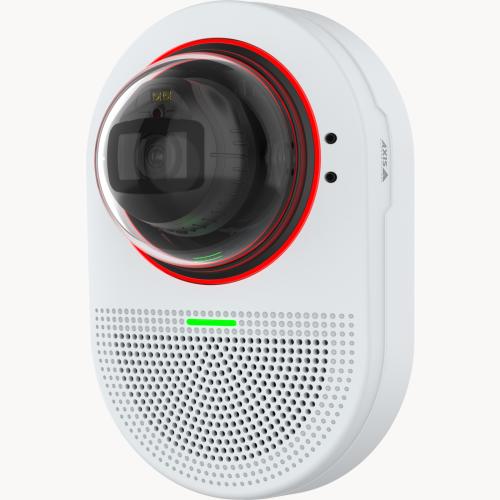

AXIS Q9307-LV Dome Camera
All-in-one audio-visual monitoring device
5 MP video with two-way audio
Preinstalled audio and video analytics
Remote monitoring while safeguarding privacy
Withstands chemical wipe-downs
Cost-efficient all-in-one device
Technical specifications
DATASHEET (PDF)
Models: AXIS Q9307-LV
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.7"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.13 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 2592x1944
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3 - 8 mm
Horizontal field of view 104 - 40 °
Vertical field of view 74 - 29 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone Yes
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed OS Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature 0 to 40 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP44
Designed for repaint Yes
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q9307-LV AR, AU, BR, CN, EU, JP, KR, UK, US 02487-001
AXIS Q9307-LV IN 02487-113
