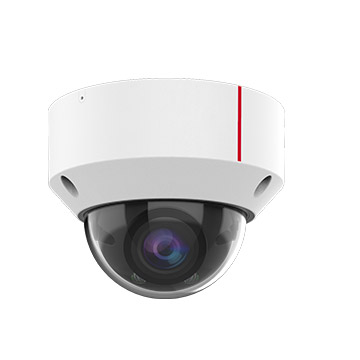

C325D-10-IU Huawei1T 5MP Infrared AI Fixed Dome Camera
Brand:Huawei Holosens
Model:C325D-10-IU
Lens:2.8-12mm
Detail
C325D-10-IU Huawei1T 5MP Infrared AI Fixed Dome Camera
1 TOPS computing power
Supports heat map, behavior analysis, and face and body detection
1/2.7" CMOS sensor
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast.
CPU Hi3516D V300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash type SPI NAND Flash 256.0 MB
Max resolution 5MP 2560(H)*1920(V)
Sensor size 1/2.7"
Min illumination Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 2.8–12 mm
Angle of view Horizontal: 30.6° (T) to 94° (W); vertical: 24° (T) to 70° (W)
IR range 30 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
Behavior analysis Fast movement,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Face Face detection
Person Person detection
Audio port Supported
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3af)
Power consumption Maximum: 7 W; typical: 5 W
Operating temperature –30°C to +60°C (illuminator disabled) –30°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10
