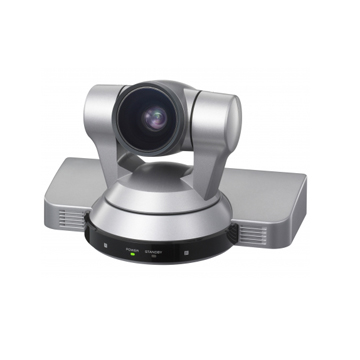

EVI-HD1 SONY Color Video Camera

Brand:SONY

Model:EVI-HD1

Detail

EVI-HD1 The High-Definition, All-in-One, Pan/Tilt/Zoom (PTZ) EVI-HD1 Color Video Camera Brings Scenes to Life

Specifications


Camera
Image Sensor
1/3-type CMOS
Image Sensor (Number of Effective Pixels)
Approx. 2M pixels (16:9)
Signal System
NTSC, PAL
Signal System
720p/59.94, 720p/50, 720p/29.97, 720p/25
1080i/59.94, 1080i/50, 1080p/29.97, 1080p/25,
Minimum Illumination (50IRE)
15lx (F1.8)
S/N Ratio
50 dB
Gain
Auto/Manual (-3 dB to +18 dB)
Shutter Speed
1/2 to 1/10,000 sec.
Exposure Control
Auto, Manual, Priority AE, Exposure compensation, Blight
White Balance
Auto, Indoor, Outdoor, One-push auto, Manual
Optical Zoom
10x
Digital Zoom
4x
Focusing System
Auto/Manual
Horizontal Viewing Angle
70 degrees (wide) to 8 degrees (tele)
Focal Length
F1.8 to F2.1
f=-3.4mm (wide) to 33.9mm (tele)
Minimum Object Distance
100mm (wide)
Pan/Tilt Angle
Pan: ±100°, Tilt: ±25°
Pan/Tilt Speed (Max.)
Pan: 300°/sec, Tilt: 125°/sec
Preset Position
6
Camera Features
Auto ICR
No
Wide-D
No
Image Stabilization
No
Image Flip
No
Auto Power Off
No
Night Power Off
No
Interface
Hd Video Output
HD-SDI, Analog Component (Y/Pb/Pr)
Sd Video Output
VBS, Y/C
Camera Control Interface
RS-232C (8-pin mini DIN)
Sync. System
INT
General
Power Requirements
DC 12V (10.8 to 13.0V DC)
Max. 30 W (at DC 12 V)
Operating Temperature
32°F to 104°F
0°C to 40°C
Storage Temperature
-4°F to +140°F
'-20°C to +60°C
Dimensions (W x H x D) *[1]
259 x 150 x 169 mm
10 1/4 x 6 x 6 3/4 inches
Mass
4 lb 7 oz
2 kg
Body Color
Gray
Wide Conversion Lens Attachable
No
Mountable Angle
±15°
Ceiling Mount
No
Supplied Accessories
Operating instruction (1)
IR remote commander unit (1)
AC power cable (1)
AC adaptor (1)
