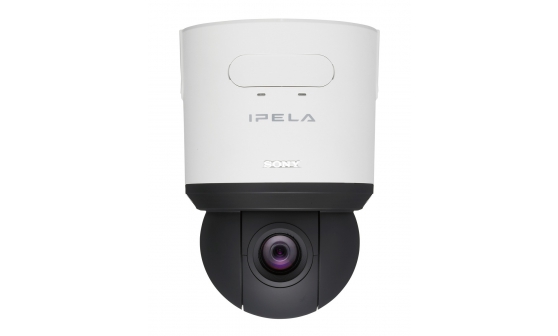

SNC-RS46N Sony SD (NTSC) Rapid Dome Camera

Specifications
Camera
Image Sensor1/4 type CCD with Exwave HAD technology
Number of Effective PixelsNTSC: Approx. 0.38 Megapixels
PAL: Approx. 0.44 Megapixels
Signal SystemNTSC
Minimum Illumination (50 IRE)Color : 0.7 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
B/W : 0.08 lx (XDNR ON, VE ON, Slow Shutter OFF, 50 IRE)
Minimum Illumination (30 IRE)Color: 0.40 lx (F1.6, AGC ON, 1/60 s)
B/W: 0.030 lx (F1.6, AGC ON, 1/60 s)
S/N Ratio (Gain 0 dB)More than 50 dB
GainAuto / Manual (-3 to +28 dB)
Shutter Speed1 s to 1/10000 s
Exposure ControlAuto, Full auto, Shutter-priority, Iris-priority, Manual, EV compensation, Backlight compensation
White BalanceAuto, Indoor, Outdoor, One-push WB, ATW, Manual
LensAuto-focus zoom lens
Powered ZoomYes
Easy ZoomNo
Zoom RatioOptical zoom 36x
Powered FocusYes
Horizontal Viewing Angle57.8° to 1.7°
Focal Lengthf = 3.4 mm to 122.4 mm
F-NumberF1.6 (wide), F4.5 (tele)
Minimum Object Distance320 mm (wide) to 1500 mm (tele)
Pan/Tilt/Rotation Angle (manual)360° endless rotation/ 210°
Pan Speed400 degrees/s (max.)
Tilt Speed400 degrees/s (max.)
Number of Preset Positions256
Number of Tour Programs5 preset tours, 4 shadow tours, 16 presets per one preset tour
IR IlluminatorNo
Camera Features
Day/NightTrue D/N
Wide-DDynaView
Tone CorrectionVE (VE)
Noise ReductionXDNR
Image StabilizerNo
Vandal ResistantNo
Ingress ProtectionNo
Video Server Features
Video
Resolution720 x 480, 640 x 480, 384 x 288, 320 x 240
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264/MPEG-4/JPEG : 30 fps (720 x 480)
Multi streaming CapabilityTriple streaming*1
Number of Clients10
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA
Intelligent Motion DetectionYes
Audio
Compression FormatG.711/G.726
System Requirements
Operating SystemMicrosoft Windows XP
Windows Vista (32 bit)
Windows 7 (32 bit)
ProcessorCPU: Pentium4 2.4 GHz, Intel Core2 Duo1.8 GHz or higher
Memory1 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNC, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Number of IP Address/Mac ADDRESS1
ONVIF ConformanceProfile S
Wireless NetworkYes (with optional SNCA-CFW5)
AuthenticationIEEE 802.1X
Interface
Analog Video OutputComposite video (1.0 Vp-p)
530 TV lines
Microphone InputMini jack (monaural), MIC IN/LINE IN: 2.2kΩ, 2.45 V DC plug-in power
Line InputMini jack (monaural)
Line OutputMini jack (monaural), Max output level : 1 Vms
Network Port10BASE-T/ 100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x4
Alarm Outputx2
Serial InterfaceRS-232C, RS-422/RS-485 (PELCO D protocol)
Card SlotsCF card x 1
USB SlotsNo
General
Power RequirementsIEEE 802.3at compliant (PoE+) Class 4, AC 24 V, DC 12 V
Power Consumption23 W max.
Operating Temperature0 to +50℃
+32°F to +122°F
Storage Temperature-20℃ to +60℃
-4°F to +140°F
Operating Humidity20 to 80%
Storage Humidity20 to 95%
Dimensions (W x H x D)*2φ154 x 226 mm
φ6 1/8 x 9 inches
MassApprox. 2.0 kg
Approx. 4 lb 6 oz
Safety RegulationsUL2044, FCC(Class A)
ICES-003 Class A Digital Device
IEC60950-1
EN55022(A)+EN55024+EN50130-4
JATE Technical standard (LAN), VCCI Class A
AN/NZS CISPR22
Supplied AccessoriesCD-ROM (User's Guide, SNC toolbox) (1)
Ceiling base unit (1)
Ceiling bracket (1)
Mounting template (1)
Rope (1)
Release button protector (2)
Screws
Cables
Warranty card (1)
Installation Manual (1)
Notes
*1Triple streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
*2The values for dimensions are approximate.
