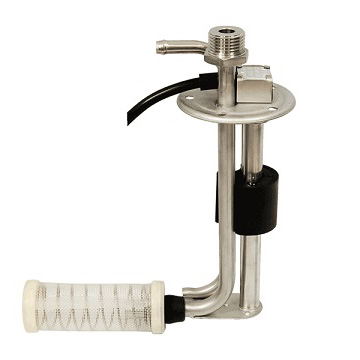

TN  fuel sensor is mainly used in light trucks, construction machinery, and yachts. In addition to the function of measuring the fuel level, it can also customize the engine inlet and return oil channels and air outlets according to requirements.

Application

TN fuel level sensor for generator sets for oil tank of generator sets.
Technical Data

Main material:stainless steel
The TN sensor uses fluid buoyance and magnetic induction to measure the liquid level.
The sensors provide precise measurements, are corrosion-resistant, and are leak-proof when turned over.
These features allow the sensors to be wildly used ih light trucks, buses, boats, and in various engineering and mechanical fields.
The graceful deisigns and superios quality of the sensors has received approvals and numerous acclams from famous vehicle OEMs from around the world.
The sensor is designed according to the actual tank shape for exact measurements of the tank content.
Measurements are done by series of reed switches positioned inside the level tube.
A float, with built-in megnets then triggers the reed relays, generating a potential-free resistance with a ohm value that increases or decreases according to the respective fluid level.
Resistance output is fully customizable.
The float is the oly moving part of the sensor, thereby minimizing potential mechanical failures.
All sensors are fully insulated to protect against voltage inside the tank.
Mounting:SAE standard 5 holes or 6 holes
Length:150-700mm
Rated power:125mW
Rated Current for alarm switch:500mA
Wire:PVC material (PA corrugated pipe cover is optional)
Output signal:Resistance control signal 0-190ohm, 240-33ohm, or customize as required.
Operating temperature:-40°C ~+85°C
Resolution range:10-40mm
Connector:Delphi, Tyco, or others are available according to your requirements.
