AXIS P1245 0926-001 Network Camera
Lens Focal length 2.8 mm
Varifocal lens No
Aperture 2.0
Horizontal field of view 111 °
Vertical field of view 61 °
Lens mount M12
Detail

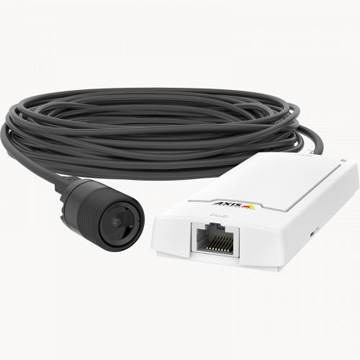

AXIS P1245 Network Camera
Complete, highly discreet HDTV 1080p camera
HDTV 1080p resolution
WDR – Forensic Capture
111° horizontal field of view
Axis Zipstream technology
Power over Ethernet
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P1245
Camera
Image sensor CMOS
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.22 lux
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) –
Thermal sensor resolution –
Video
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes –
Lens
Focal length 2.8 mm
Varifocal lens No
Aperture 2.0
Horizontal field of view 111 °
Vertical field of view 61 °
Lens mount M12
Replaceable lens Yes
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support –
Two-way audio –
System integration
Audio detection –
Active tampering Yes
Alarm inputs/outputs –
Serial connectors –
AXIS Camera Application Platform Yes
Digital I/O –
Network
Power over Ethernet Yes
PoE Class 2
Security
HTTPS encryption Yes
IEEE 802.1X Yes
General
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Power
Power (max) –
Power (average) –
DC input voltage –
AXIS P1245 AR, AU, BR, CN, EU, JP, KR, UK, US 0926-001
AXIS P1245 IN 0926-113
