Detail

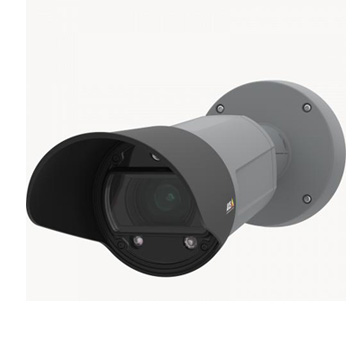

AXIS Q1700-LE License Plate Camera
Dedicated camera for sharp images at high speeds
Designed for third-party software
Sharp license plate images day and night
Handle speeds of up to 130 km/h (81 mph)
Capture range of up to 100 m (328 ft)
Robust design for rough weather
Technical specifications
Models: AXIS Q1700-LE
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder -
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization Yes
Lens Focal length 18 - 137 mm
Optical zoom 8
Horizontal field of view 16 - 2.3 °
Vertical field of view 9.6-1.3 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot –
General
Remote focus –
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Sustainability PVC free
Power
Power (max) 13.5 W
Power (average) 7.8 W
AXIS Q1700-LE AR, AU, BR, CN, EU, JP, KR, UK, US 01782-001
AXIS Q1700-LE IN 01782-113
