Brand:AXIS
Model:XP40-Q1785
Lens Focal length:4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60-2.3 °
Vertical field of view 39-1.3 °

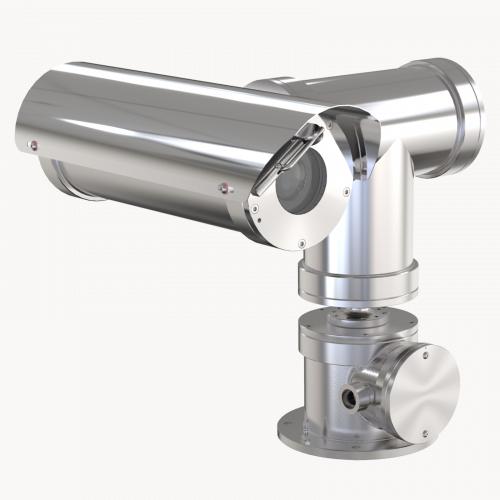

XP40-Q1785 Explosion-Protected PTZ Camera
First-class positioning camera for hazardous areas
HDTV 1080p with 32x optical zoom
360° continuous pan and 180° tilt movement
Forensic WDR, Lightfinder and EIS
Ease of installation with fiber optics or Ethernet
NEC, CEC, IECEx, ATEX and EAC Ex
XP40-Q1785 is a robust, high-performance positioning camera designed for safe operation in vast, potentially combustible environments. It offers the most comprehensive field-of-view possible, thanks to 32x optical zoom, 360° continuous pan rotation and 180° tilt movement.
XP40-Q1785 is certified (NEC, CEC, IECEx, ATEX and EAC Ex) for use in potentially combustible environments. This robust, positioning camera comes enclosed in a stainless-steel housing with IP66 and IP67 ratings and can withstand extreme temperatures ranging from -60 °C to 60 °C (-76 °F to 140 °F). It supports electronic image stabilization (EIS), which greatly improves video quality in situations where the camera is subject to vibration such as gusty winds or passing vehicles. Furthermore, EIS allows you to install your camera out of reach on high walls or columns with minimum impact on image quality.
XP40-Q1785 delivers outstanding 24/7 long-range monitoring. This high-performance camera offers 2 MP/HDTV 1080p image quality at up to 60 fps. Featuring 32x optical zoom it provides 360° continuous pan rotation and 180° tilt movement. This means that not only can the camera turn in a complete circle to prevent any blind spots around it, it can also see straight ahead, below, and above its position so you don't miss a thing.
It's got Forensic WDR for clarity even when there are both dark and light areas in the scene. And Lightfinder for high-quality color images recorded in near darkness and clear, sharp images of moving objects. Plus, Axis Zipstream significantly lowers bandwidth and storage requirements.
Powered by 24, 110, or 230 V AC, this high-performance PTZ offers long-distance connections using fiber optics or Ethernet cabling. Thanks to direct mains power input it's simple to install and there's no need for an external power supply. Featuring built-in long-life wipers, you're guaranteed great images even in snow and rain making this camera ideal in environments exposed to dirt, grime and adverse weather conditions. It comes with AXIS Guard Suite and Active Gatekeeper pre-installed. Plus, with barrel distortion correction and scene profiles it can be automatically optimized to suit specific scenarios, so you get cost-effective installation and great image quality, even at the edges of the images.
Technical specifications
Models: XP40-Q1785 -40 C 230 V
XP40-Q1785 -60 C 230 V
XP40-Q1785 UL -50 C
XP40-Q1785 -60 C 230 V FO
XP40-Q1785 UL -50 C 110 V FO
XP40-Q1785 UL -50 C 110 V
XP40-Q1785 -40 C 230 V FO
XP40-Q1785 -40 C
XP40-Q1785 -60 C
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder
Wide dynamic range Dynamic Contrast
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60-2.3 °
Vertical field of view 39-1.3 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Network
PoE Class –
Security
Signed firmware Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom Yes
Local storage (memory card slot)Yes
Outdoor Ready Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage –
Mount
Ex Wall Mount XP40
An electropolished 316L stainless steel wall mount is designed for XP40-Q1765 Explosion-Protected PTZ Network Camera. The wall mount is ideal for onshore, offshore, marine and heavy industrial applications.
Weight: 14 kg (31 lb)
XP40-Q1785 UL -50 C 110 V FO Class/Division, Class/Zone 02123-001
XP40-Q1785 UL -50 C 110 V Class/Division, Class/Zone 02122-001
XP40-Q1785 UL -50 C Class/Division, Class/Zone 02121-001
XP40-Q1785 -60 C 230 V FO ATEX, CSA, EAC, IECEx 02120-001
XP40-Q1785 -60 C 230 V ATEX, CSA, EAC, IECEx 02118-001
XP40-Q1785 -60 C ATEX, CSA, EAC, IECEx 02116-001
XP40-Q1785 -40 C 230 V FO ATEX, CSA, EAC, IECEx 02119-001
XP40-Q1785 -40 C 230 V ATEX, CSA, EAC, IECEx 02117-001
XP40-Q1785 -40 C ATEX, CSA, EAC, IECEx 02115-001
